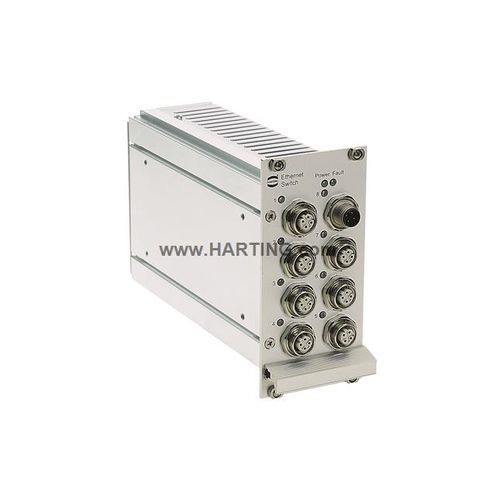

Unmanaged ethernet switch Ha-VIS eCon 9000

7 ports19"fast

Element Industrial Ethernet Switches Specification Unmanaged Type of Ethernet Fast Ethernet Total number of ports 7 Fixing for 19" racks according to DIN EN 60297 Switching technology Store and Forward Frame size 1.632 kB MAC table size 8k Entries Packet buffer size 1 Megabit Non blocking Yes Quality of service Yes Flow control Off Signal contact No Details with coated PCB Pack contents Assembly instructions Nominal voltage 24 V DC 48 V DC Permissible voltage 12 V DC Surge protection Yes Operating current <110 mA Supply circuit SELV (Circuit Breaker 10 A) Termination method M12 A-coding Pinout + / - / - / + Reverse polarity proof Yes Operating temperature -40 ... +70 °C Storage temperature -40 ... +85 °C Relative humidity 10 ... 95 % Non-condensing (operation) 10 ... 95 % Non-condensing (storage/transport) Air pressure ≥795 hPa ≈ 2000 m Degree of protection acc. to IEC 60529 IP20 mated condition MTBF ≈ 1411,000 h Material (hood/housing) Aluminium (anodised) Length 192 mm Width 60.6 mm Height 128.4 mm RoHS compliant with exemption ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Yes California Proposition 65 substances Yes
