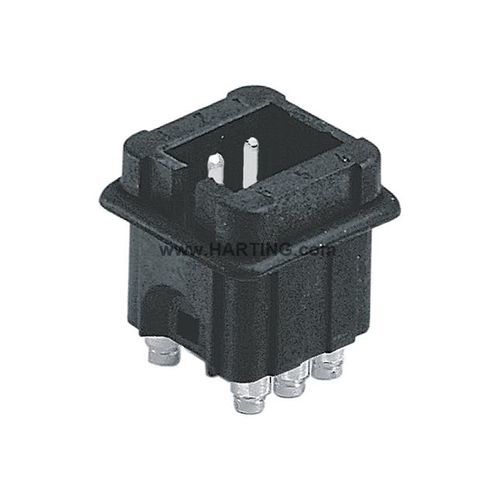

Plug insert Staf®

plug insert
plug insert
plug insert
Add to favorites
Compare this product


Description

Category Inserts Series Staf® Termination method Solder termination Gender Male Size 3 A Number of contacts 6 Conductor cross-section 2.5 mm² Rated current ‌ 10 A Rated voltage 25 V Rated voltage ‌ 25 V AC ‌ 60 V DC Rated impulse voltage 0.8 kV Pollution degree 3 Rated voltage acc. to UL 50 V Rated voltage acc. to CSA 50 V Insulation resistance >1010 Ω Contact resistance ≤ 2 mΩ Limiting temperature -40 ... +100 °C Mating cycles ≥ 500 Material (insert) Polyamide (PA) Colour (insert) Black Material (contacts) Copper alloy Surface (contacts) Silver plated Material flammability class acc. to UL 94 HB RoHS compliant with exemption ELV status compliant with exemption China RoHS 50 REACH Annex XVII substances Not contained REACH ANNEX XIV substances Not contained REACH SVHC substances Yes California Proposition 65 substances Yes Specifications IEC 60664-1 IEC 61984 UL / CSA UL 1977 ECBT2.E235076
