Satellite antenna HX-AULD078

GNSSGLONASSGPS

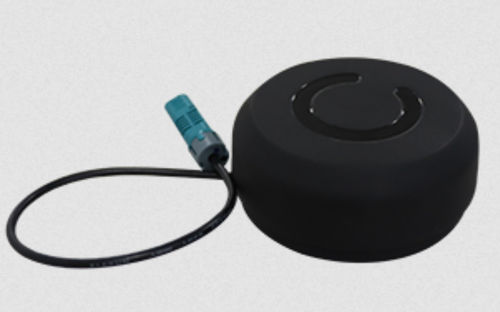

HX-AULD078 is a high-performance multiband automotive antenna designed for high dynamic applications. It offers superior satellite signal tracking, including GPS, BDS, GLONASS, Galileo, QZSS, IRNSS as well as L-Band correction service. With compact form factor, ruggedized housing, and flexible installations, this antenna greatly improves the positioning accuracy under challenging environmental conditions, such as continuous shock and vibration, ideal for agricultural tractors, autonomous vehicles and unmanned delivery vehicles. Key Features Reliable and consistent Performance HX-AULD078 exhibits stable phase center variation, 33dB high-gain LNA with very low noise figure (≤2dB) and low axial ratio (≤3dB), wide beam width and low elevation satellite tracking ability for reliable GNSS signals and outstanding positioning accuracy. Customizable With Wide Applicability HX-AULD078 is a versatile GNSS antenna with customizable housing and connector options, making it suitable for various applications. Compact Form Factor and Ruggedized Housing This automotive-grade antenna is designed into low-profile and compact form factor to minimize damage from overhead objects and reduce wind resistance. Its ruggedized housing ensures long lifespan with IP65 protection. Tracking in Challenging Environments The antenna ensures stable GNSS signal tracking in tough conditions with its superior performance, including multipath rejection, low axial ratio, linear phase response, minimal phase center variation, and anti-interference performance.
