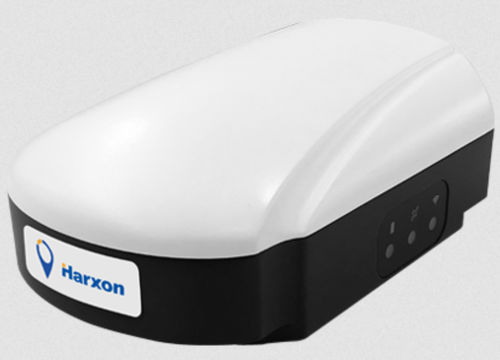

Satellite antenna TS112

BluetoothGNSSGLONASS

Harxon TS112 integrates a high precision GNSS module with multi-band GNSS receiver for fast convergence times and trustworthy performance, and a Harxon X-SsurveyTM Technology GNSS Antenna in a single rugged housing. The embedded 4in1 GNSS antenna supports GPS, GLONASS, BeiDou, Galileo for consistent and robust satellite signals tracking and offers RTK level positioning accuracy for agriculture and machine control. Key Features SLIDETM Technology TS112 features Harxon patented SLIDETM technology to provide smooth positioning and exceptional linear accuracy, ensuring steady and consistent positioning output. Terrain Compensation for Maximum Accuracy TS112 also features terrain compensation algorithm that is capable of correcting deviations that caused by vehicle’s roll and pitch while working on uneven groups or slopes. Rich Interfaces for Flexible Connectivity TS112 equips two NMEA0183 compatible RS-232 serial ports, one NMEA2000 compatible CAN port. It also equips Bluetooth wireless technology for easy configuration. Ruggedized and Durable Design, Flexible Installations Available TS112 adopts a compact and flat structure design. Its IP67 rating housing ensures reliable performance in harsh environments. It also simplifies the installation by providing two options .
