Satellite antenna HX- CUX012A

GLONASSGPSGALILEO

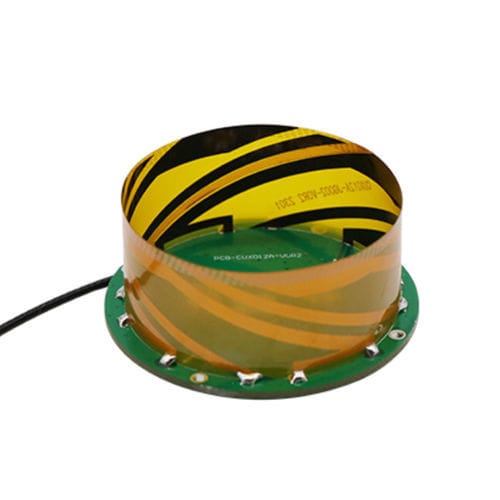

Harxon HX-CUX012A embedded helix antenna is designed for high precision positioning of UAV and offers superior satellite signal tracking. It provides excellent axial ratios, enables excellent multipath mitigation and a very precise phase center. As the helix antenna with the lowest profile ever, it is easy to be integrated, ideal for various UAV applications. Key Features Low Profile, Easy to be Integrated HX-CUX012A is designed with extremely low profile (21.9mm) and weighs only 8g with a compact dimension of ¢46*21.9mm, making it ideal to be integrated into UAVs, surveying and monitoring devices. It meets the strict demands of low profile. High Phase Center Stability and Consistent Performance HX-CUX012A features a multi-point feeding technology that ensures a high phase center stability with centimeter level accuracy. It has a high peak gain of 3.3 dBi and excellent axial ratios, enabling excellent multipath mitigation and a very precise phase center. Strong Anti-interference Performance HX-CUX012A optimizes circuit layout and equips a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance and restraints possible unwanted electromagnetic interference. Advanced Patented D-QHA Technology HX-CUX012A antenna adopts patented D-QHA technology for stable performance of wide-angle circular polarization (WACP), which ensures exceptional low elevation satellite tracking while maintaining high gain and providing reliable signal tracking.
