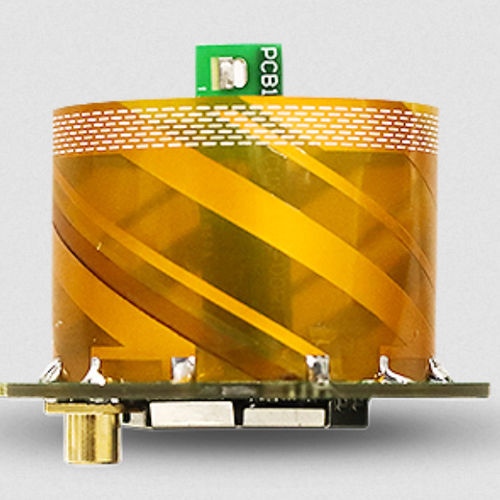

GPS antenna HX-CUX005A

GLONASSGALILEOWiFi

Harxon HX- CUX005A is an embedded helix antenna designed for high-precision positioning. It offers superior satellite signal tracking. Upgraded with WiFi and BT antenna for better integration, this product is ideal for surveying, UAV, personnel and vehicle monitoring. It’s regarded as an all-in-one solution for integrated helix antenna needs. Key Features Advanced D-QHA Technology for Consistent Performance HX-CUX005A features a multi-point feeding technology that ensures a high phase center stability. Meanwhile, adopting advanced patented D-QHA technology and covering a wider frequency band, HX-CUX005A achieves extraordinary 2.5dBi gain. Strong Anti-interference Performance HX-CUX005A optimizes circuit layout and equips a robust pre-filtered LNA that features an excellent out-of-band interference rejection performance and restraints possible unwanted electromagnetic interference. Small Form Factor, Light Weight, Designed for Integration Weighting only 10g, the light HX-CUX005A embedded antenna has a compact dimension of Ф44*H37mm, making it ideal to be integrated into UAVs, surveying and monitoring devices. All-in-one Helix Antenna, Integrated with WIFI&BT Antenna HX-CUX005A is designed with the integration of WiFi and BT antenna (2.4GHz/5.8GHz). Its 1dBi gain enables easy connection and configuration for mobile device users; its highly integrated design simplifies development and reduces costs for device engineers.
