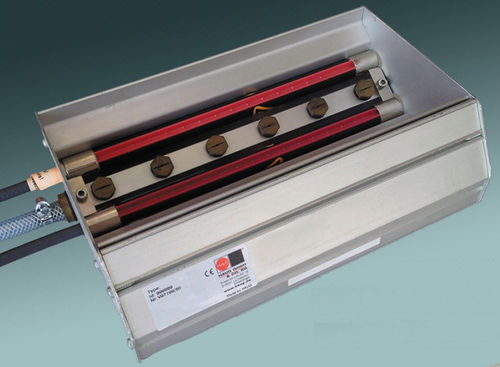

Ionizer WXC 2

The Web Cleaner 2 WXC 2 is used for contact-free cleaning with simultaneous extraction of visible dust and smaller particles. Cleaning and elimination of electrostatic charges from material webs in the same process by using ionized compressed air. The integrated extractor ensures an optimum and residue-free degree of surface cleaning. COMBINATION WITH IONIZING BARS The following ionizing bars can be combined with the Web Cleaner housing: Ionizing bar EI RN Ionizing bar EI RD Ionizing bar EI VS Ionizing bar EI Ex T (for potentially explosive areas) COMPRESSED AIR Compressed air of a quality suitable for spraying applications must be available, i.e. it must be free of oil and water. The upstream installation of a service unit with integrated oil and water separator is recommended. AIR CONSUMPTION Air consumption in Nm³/h has a function of extraction width and operating pressure WEB SPEEDS The maximum web speed of the standard version is approx. 80 m/min. Higher speeds are available on request. PULSED OPERATION The application of Statik-Air systems in pulsed operation can be recommended for media transported with intermediate distances/gaps. Advantage: reduced costs (e.g. for compressed air). Pulsed operation can be controlled by external input to the switchgear, e.g. using photoelectric sensors, proximity switches or other potential-free contacts. CONTINUOUS OPERATION The application of Statik-Air systems in continuous operation can be recommended if the medium to be cleaned passes through continuously.
