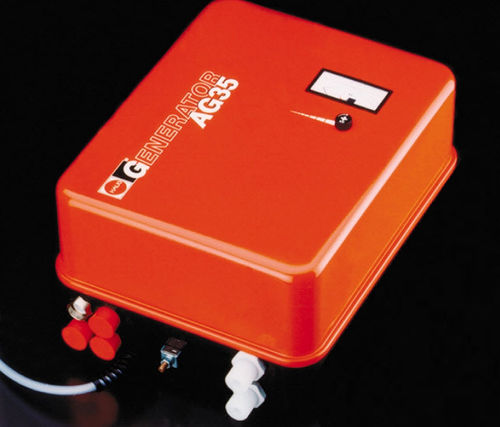

Electrostatic charge generator AG 35

Beside its two high-voltage connections for the charging section, the charging generator AG 35 also offers a discharge section with four high-voltage connections and electronic fault and performance monitor. The electronic voltage adjustment is stepless, and there is an analog voltage output display integrated into the unit. HAUG-CHARGING SYSTEMS HAUG charging systems are designed to apply electrostatic charges without physical contact. These systems can be used for any application where different materials are to be pinned together electrostatically. At least, one of these materials must be non-conductive. The electrostatic pinning serves to enhance subsequent processes, such as film/foil overlapping in packaging machines. All HAUG charging generators are available with positive or negative polarity. APPLICATIONS HAUG charging systems can be used, among others, in the following applications: for fixing and positioning films and foils, paper and cardboard, e.g. on steel sheets, glass panels, wood panels or similar; for fixing films and foils on packaging machines / film welding machines; for fixing films and foils on turrent film winders, for fixing the wound film against telescoping and glue-less commencement of the film winding process on cardboard tubes.
