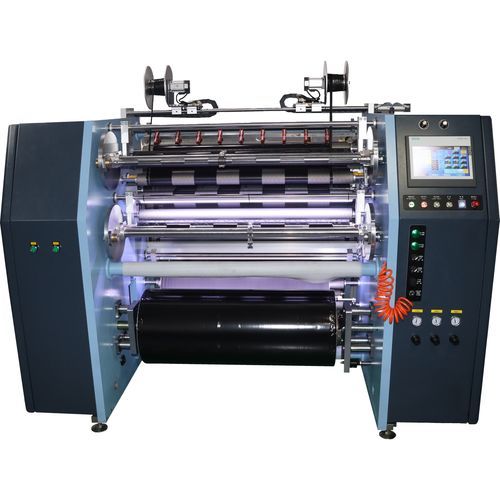

Thermal transfer ribbon slitting machine

N1 TTR Slitter is our most primary model of slitter.It is one of the cheapest TTR slitter in China, and very suitabel for the one who just want to start ttr slitting. Max Slitting Speed: 250m/min Max Slitting Width: 1010mm With 4 pcs 1 inch air shaft With 4 pcs 1/2 inch air shaft With 30 pcs Magnetic Clip Blade Holder With semi auto leader trailer table. With the ribbon saving function. APPLICATION Professional slitter for Barcode Ribbon,Fax Ribbon,Pigment Foil,Hot Stamping Foil and other Film Thickness from 4-20 micron. BASIC SPECIFICATION 1 SLITTING WIDTH 650mm-1010MM 2 SLITTING THICKNESS 4-20 MICRON 3 UNWIND DIA. 650MM (MAX) 4 UNWIND CORE I.D. SHAFTLESS 6 INCH 5 REWINDING DIA. MAX 110MM(AROUND 1300M) OPTIONAL: 140MM MAX 6 REWINDING WIDTH MINI 30MM 7 REWINDING CORE I.D 1 INCH AIR SHAFT AND 1/2 INCH AIR SHAFT 8 SLITTING UNIT RAZOR BLADE EACH 30 PCS 9 MECHANICAL SPEED MAX280M/MIN 10 WORKING SPEED MAX250M/MIN 11 MACHINE FRAME THICKNESS: 30MM 12 METER COUNTER: METER COUNTER 13 WASTE EDGE UNIT: SERVO REWINDING MOTOR 14 POWER SOURCE 220V,2 PHASE AC 5KW 15 PNEUMATIC SOURCE 0.6-0.8MPA 16 MACHINE SIZE (REF. ONLY): 2560MM*2050MM*1680MM 17 FLOOR SPACE(REF.ONLY)： 3000MM*2500MM 18 N.W/G.W (REF. ONLY): 2000KGS/2200KGS FUNCTIONAL DESCRIPITION Rewinding: 1. 30 pcs magnetic Clip Blade Holders, change slitting width quick and easy.
