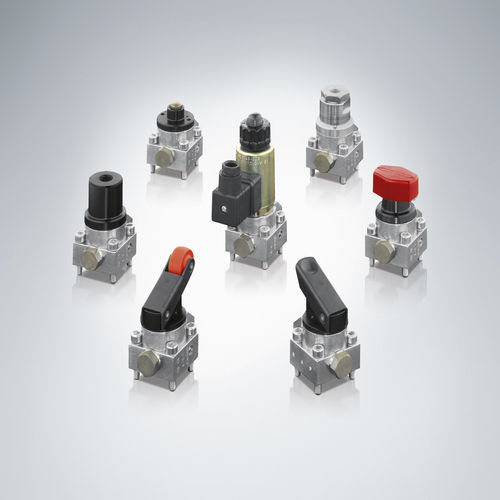

Poppet hydraulic directional control valve Glever-operatedmechanically-operated4/3-way
Add to favorites
Compare this product
Characteristics
- Type
- poppet
- Actuating method
- lever-operated, mechanically-operated
- Ports/positions
- 4/3-way, 4/2-way, 3/2-way, 2/2-way
- Operating pressure
400 bar, 500 bar, 700 bar
(5,801.51 psi, 7,251.89 psi, 10,152.64 psi)- Flow rate
Min.: 6 l/min
(1.6 us gal/min)Max.: 65 l/min
(17.2 us gal/min)
Description
The directional seated valve type G is available as a 2/2, 3/2, 4/2, 3/3 and 4/3 directional seated valve with different actuation types and plug types. It is a ball seated valve. Actuation using a hand lever enables switchable pressures of up to 700 bar.
Features and advantages
Dirt-resistant design with high switching reliability
Low shifting forces and smooth, shock-free shifting
Operating pressures up to 700 bar (type G)500 bar (type NG)
Interchangeable solenoid for greater flexibility and easy servicing
Version for HFA fluid
Version with standard connection pattern
Intended applications
Machine tools (cutting and non-cutting)
Clamping tool, punching tools, fixtures
Rubber and plastics machinery
Hydraulic tools
