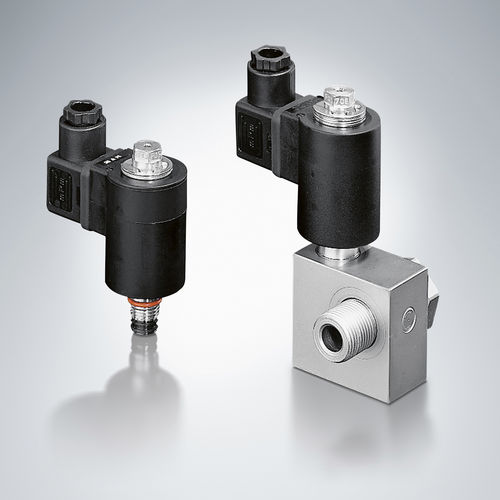

Poppet hydraulic directional control valve EM

pilot-operateddirect-operated2/2-way

The directional seated valves type EM and EMP are screw-in valves. As cone valves they are tightly sealed, with zero leakage in the closed state. 2/2-way directional seated valves with direct or pilot-controlled electromagnetic actuation are available. The directional seated valve type EM is available as a directional valve; type EMP is available as a directional seated valve with either damped switching (soft-shift) or proportional throttling. Appropriate connection blocks enable direct pipe connection or manifold mounting. They may contain additional components, e.g. a drain valve, bypass throttle valve, pressure switch or flow control valve. Features and advantages Zero leakage in closed switching position Directly switching up to approx. 3 l/min and with pilot-controlled switching up to 160 l/min Low flow resistance even at high flow rates Long service life thanks to hardened seats Intended applications Cranes and lifting equipment Road vehicles Materials handling (industrial trucks etc.) Handling and mounting technology (industrial robots, etc.)
