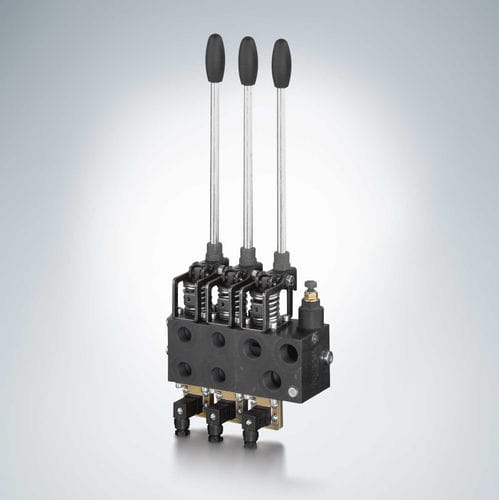

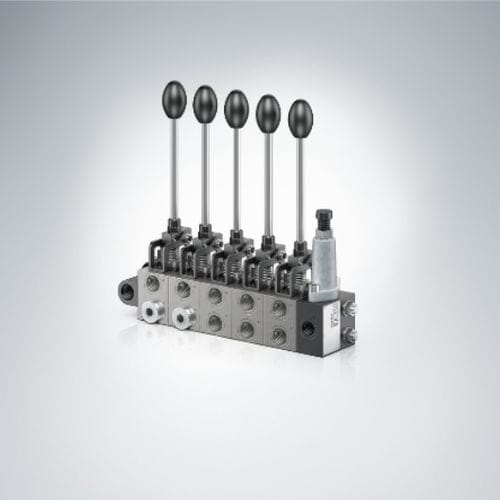

Spool hydraulic directional control valve DL series
manualcompact

Spool hydraulic directional control valve - DL series - HAWE Hydraulik SE - manual / compact
Spool hydraulic directional control valve - DL series - HAWE Hydraulik SE - manual / compact
Add to favorites
Compare this product


Characteristics

Type
spool
Actuating method
manual
Other characteristics
compact
Operating pressure

250 bar, 315 bar
(3,625.94 psi, 4,568.69 psi)

Flow rate

16 l/min, 30 l/min, 60 l/min, 90 l/min
(4.2 us gal/min, 7.9 us gal/min, 15.9 us gal/min, 23.8 us gal/min)

Description

The throttling directional spool valve type DL influences the speed of the consumer by throttling the pump circulation via a parallel circuit (bypass control). The close fit of the spool in the throttling directional spool valve means that the leakage is limited to a minimum for lifting functions. The throttling directional spool valve type DL is suitable for applications in material handling and for lifting equipment. Features and advantages Compact design Various actuation variants for manual actuation Up to 10 segments can be mounted in series connection Combinations possible for controlling lifting devices Intended applications Industrial vehicles Machines for agricultural and forestry purposes Construction and construction materials machinery Road vehicle
