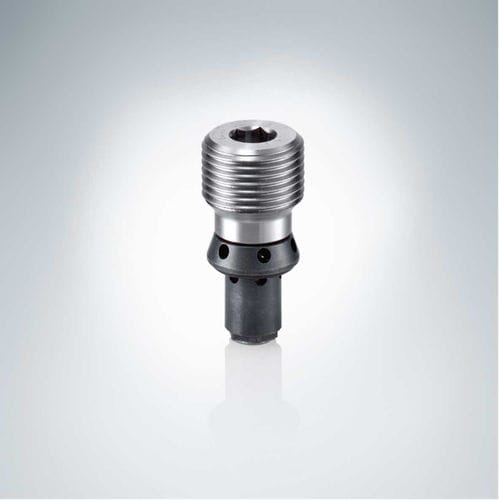

Ball check valve RHC seriesscrew-inhigh-pressurehydraulic
Add to favorites
Compare this product
Characteristics
- Type
- ball
- Body
- screw-in
- Applications
- high-pressure, hydraulic
- DN
Min.: 8 mm
(0.315 in)Max.: 30 mm
(1.181 in)- Pressure
400 bar, 500 bar, 700 bar
(5,801.5 psi, 7,251.9 psi, 10,152.6 psi)- Temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)- Flow rate
20 l/min, 30 l/min, 50 l/min, 55 l/min
(5.28 us gal/min, 7.93 us gal/min, 13.21 us gal/min, 14.53 us gal/min)
Description
In the closed state the check valve type CRH and RHC has zero leakage. It can be screwed-in and can be integrated into control blocks. The necessary mounting holes are straightforward to make.
Features and advantages
Minimal installation space
Easy to install and remove
Robust and dirt resistant
Intended applications
Industrial hydraulics
Construction machines
