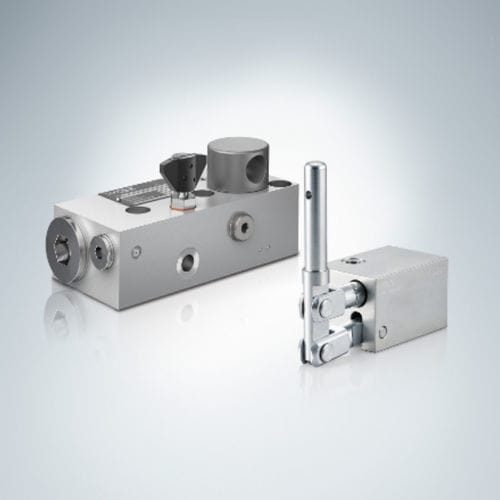

Hand hydraulic pump CH seriesaluminumsteelcorrosion-resistant
Add to favorites
Compare this product
Characteristics
- Operation
- hand
- Material
- aluminum, steel
- Other characteristics
- oil, single-acting, rugged, corrosion-resistant
- Pressure
300 bar
(4,351 psi)- Weight
2.3 kg, 3 kg
(5.07 lb, 6.61 lb)- Fluid viscosity
Min.: 0.04 m²/s
Max.: 1.5 m²/s
- Fluid temperature
Min.: -40 °C
(-40 °F)Max.: 80 °C
(176 °F)
Description
The hand pump type CH is single acting. It draws oil in when the hand lever is moved in one direction and discharges it when the hand lever is moved in the opposite direction.
The hand pump type CH is available for pipe connection and manifold mounting.
Features and benefits:
•Sturdy design
•Corrosion-resistant
•Zero-leakage pressure connection
Intended applications:
•Marine
•Mining equipment
•Wind turbines
•Fixture construction
