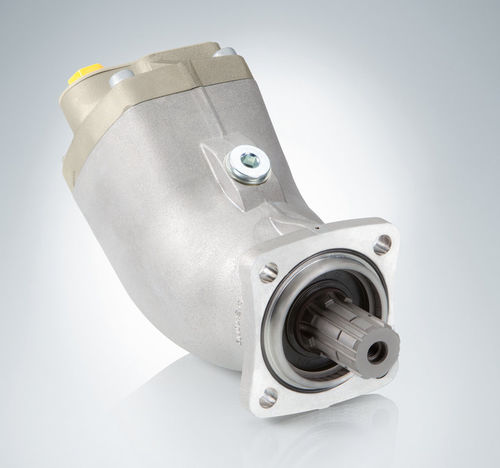

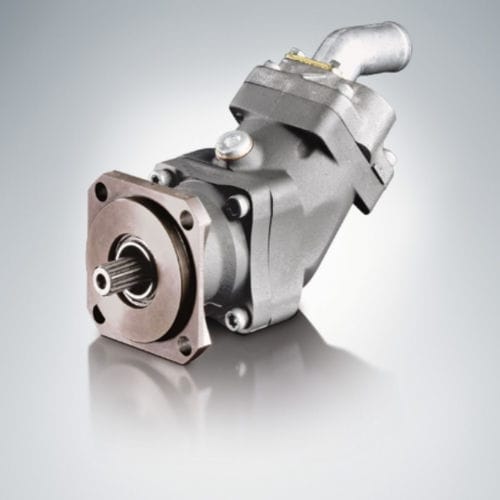

Hydraulic axial piston pump K61N series
for vehiclesopen circuitfor power take-off

Hydraulic axial piston pump - K61N series - HAWE Hydraulik SE - for vehicles / open circuit / for power take-off
Hydraulic axial piston pump - K61N series - HAWE Hydraulik SE - for vehicles / open circuit / for power take-off
Add to favorites
Compare this product

Go to the HAWE Hydraulik SE website for more information

Characteristics

Type
axial piston
Applications
for vehicles, for power take-off, open circuit
Other characteristics
high-speed
Pressure

400 bar
(5,802 psi)

Flow rate

Max.: 162 l/min
(42.8 us gal/min)

Min.: 6 l/min
(1.59 us gal/min)

Speed

500 rpm, 1,000 rpm, 1,500 rpm
(3,142 rad.min-1, 6,283 rad.min-1, 9,425 rad.min-1)

Weight

Max.: 13.9 kg
(30.64 lb)

Min.: 6.9 kg
(15.21 lb)

Fluid viscosity

Max.: 0.7 m²/s

Min.: 0.01 m²/s

Fluid temperature

Max.: 80 °C
(176 °F)

Min.: -40 °C
(-40 °F)

Power

Max.: 71 kW
(96.53 hp)

Min.: 8 kW
(10.88 hp)

Description

The axial piston pump type K60N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions. The axial piston pump type K61N is designed for open circuits in mobile hydraulics and operates on the bent axis principle. The pump is fitted mainly to the power take-off on commercial vehicle transmissions. Features and advantages Optimized power-to-weight ratio Different shaft and flange versions Smooth running across entire speed range Low heat generation Intended applications Municipal trucks Fire trucks Loading cranes and elevating work platforms Tipper trucks and skip trucks Suction dredgers and sewer cleaning vehicles
