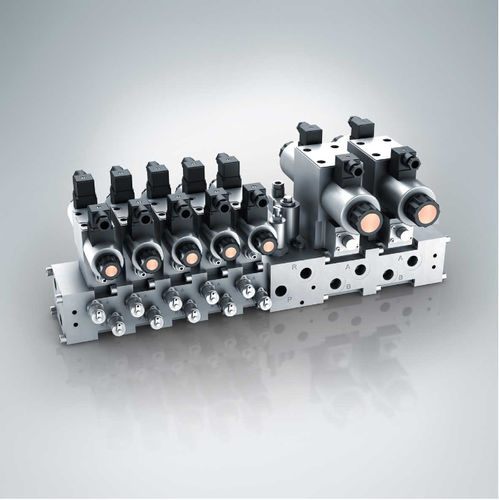

The directional valve bank type BNG connects individual valve sections using sub-plates, thus enabling compact hydraulic manifolds to be assembled flexibly.
Intermediate plates enable additional functions and contain, for example, pressure-limiting valves, idle circulation valves etc. An intermediate plate can be inserted between the sub-plate and the valve.
The valve bank can be directly flange-mounted to compact hydraulic power packs or used separately with a pipe connection.
Features and advantages
Flexible combination of directional valves with standard connection pattern NG 6 (Cetop 3)
Can be mounted directly to hydraulic power packs
Suitable for large flows
Intended applications
Machine tools (cutting and non-cutting)
Clamping tools, punching tools, fixtures
