Electrically-powered hydraulic power pack INKA series
for machine toolshandlingfor testing machine

Electrically-powered hydraulic power pack - INKA series - HAWE Hydraulik SE - for machine tools / handling / for testing machine
Electrically-powered hydraulic power pack - INKA series - HAWE Hydraulik SE - for machine tools / handling / for testing machine
Add to favorites
Compare this product


Characteristics

Power source
electrically-powered
Applications
for machine tools, handling, for testing machine
Other characteristics
compact
Operating pressure

700 bar
(10,153 psi)

Nominal power

0.3 kW, 0.4 kW, 0.6 kW
(0.4 hp, 0.5 hp, 0.8 hp)

Flow rate

Min.: 0.25 l/min
(0.07 us gal/min)

Max.: 2.49 l/min
(0.66 us gal/min)

Tank capacity

1.5 l
(0.4 gal)

Description

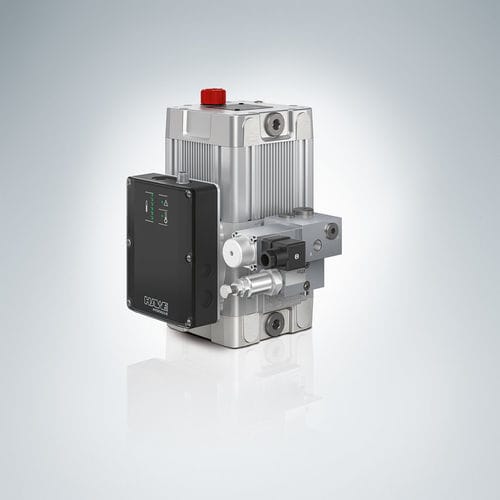

The compact hydraulic power pack type INKA consists of the tank, the integrated motor and the radial piston pump directly attached to the motor shaft. The directly mounted electronic communication box with integrated real-time operating system allows the operating state to be recorded and visualised. The measured values of the integrated multi-sensor (including the motor speed) can be passed on to the higherlevel machine controls via standardised interfaces and processed there. The consistently modular design of the type INKA means that different usage volumes and delivery flows can be realised quickly and easily from the modular system. Compatible, ready-for-connection, complete solutions can be assembled easily using a wide range of connection blocks and the valve banks that can be combined with them. Features and advantages: Prepared for condition monitoring with integrated sensors and communication box Optimum efficiency through under-oil motor cooling, direct power transmission, and sophisticated heat dissipation Suitable for nominal operating modes S2 (short period operation) and S3 (periodic intermittent operation) Resource-saving due to small oil filling volume
