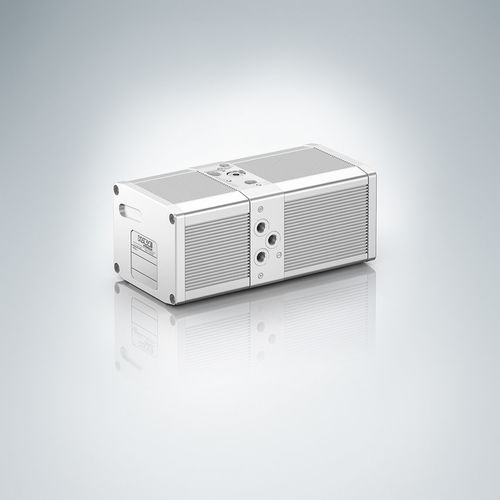

The compact hydraulic power pack type HICON’s encapsulated design offers protection against temporary immersion in water according to protection class IP 67. The pump module integrates a gear pump and a brushless motor. The motor's rotation can be reversed, thus facilitating ow reversion without requiring a directional valve.
When designing the compact hydraulic power pack type HICON, particularly emphasis was placed upon status monitoring. The integrated temperature switch protects the motor from overloading. Additional pressure-limiting valves prevent any thermal overpressure or the permissible peak pressure from being exceeded should consumer travel be blocked.
Features and advantages:
suitable for nominal modes S3 (short period operation) and S1 (continuous operation)
12 V to 24 V DC
Vertical and horizontal installation possible
Protection class IP 67
CAN bus functionality compatible with J1939 protocol
