Lithium-ion battery IEP

rectangular12 V36 V

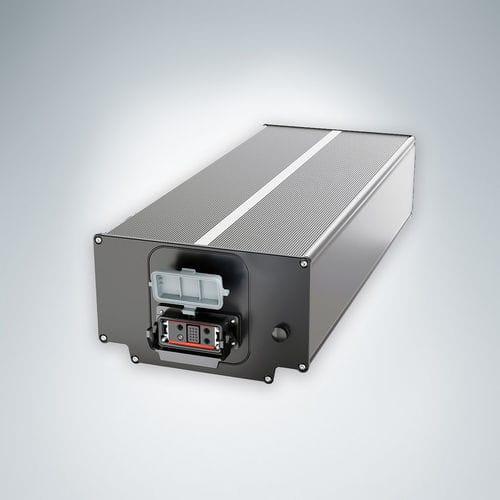

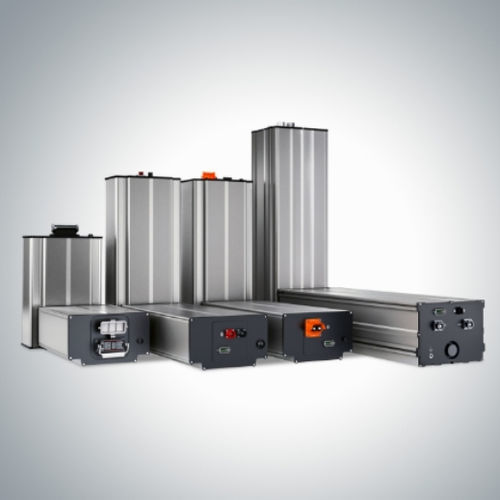

The energy pack type IEP consists of linked-up lithium ion cells. The integrated battery management system (BMS) continuously monitors the battery’s condition. This protects the battery from excessive charge and deep discharge, excessive or insufficient temperature and excessive current. It performs balancing and optimises the battery’s service life. Energy packs type IEP can be used as individual rechargeable batteries for direct connection with an industrial connector. Alternatively, they can be used as exchangeable batteries by means of a tried-and-tested quick-change system. Communication with the battery charger and read-out of battery and log data is handled via CAN bus. The energy packs are available both as low-voltage ( 60 V DC) versions. Features and advantages Very high energy density Protection class IP 65 when plugged in Sturdy aluminium housing Integrated heat management (active heater) Wake-up via 12-V signal, switch or external CAN command Intended applications Traction battery Mobile work machines Off-highway applications HGV-mounted equipment Mobile electric power supply
