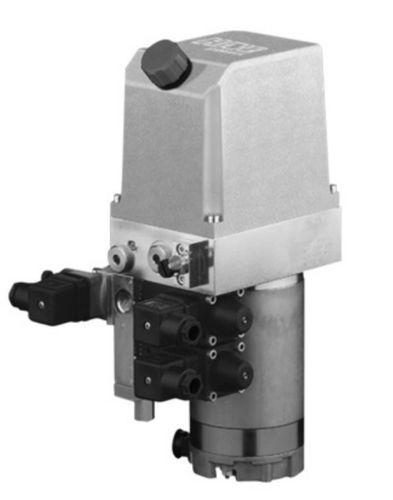

Electrically-powered hydraulic power pack NPC series
for machine toolscompactsmall

Electrically-powered hydraulic power pack - NPC series - HAWE Hydraulik SE - for machine tools / compact / small
Electrically-powered hydraulic power pack - NPC series - HAWE Hydraulik SE - for machine tools / compact / small
Electrically-powered hydraulic power pack - NPC series - HAWE Hydraulik SE - for machine tools / compact / small - image - 2
Electrically-powered hydraulic power pack - NPC series - HAWE Hydraulik SE - for machine tools / compact / small - image - 3
Electrically-powered hydraulic power pack - NPC series - HAWE Hydraulik SE - for machine tools / compact / small - image - 4
Add to favorites
Compare this product


Characteristics

Power source
electrically-powered
Applications
for machine tools
Other characteristics
compact, small
Operating pressure

Min.: 0 bar
(0 psi)

Max.: 750 bar
(10,878 psi)

Nominal power

0.3 kW, 0.6 kW
(0.4 hp, 0.8 hp)

Flow rate

Min.: 0.27 l/min
(0.07 us gal/min)

Max.: 2.29 l/min
(0.6 us gal/min)

Tank capacity

0.65 l
(0.17 gal)

Description

The compact hydraulic power pack type NPC consists of the tank, the integrated DC motor and the radial piston pump directly attached to the motor shaft. This design results in a very small installation package and makes it easy to transport the hydraulic power pack. The pump carrier comes with an integrated pressure-limiting valve as standard. By directly mounting valve banks, compact control systems can be set up quickly and easily. Features and advantages 12 V to 24 V DC Long service life and high reliability Vertical and horizontal installation possible Resource-saving due to small oil filling volume Intended applications Brakes for wind power plants Winch controls Hydraulic fixtures
