Seat hydraulic directional control valve CV seriesdirect-operated2/2-way
Add to favorites
Compare this product
Characteristics
- Type
- seat
- Actuating method
- direct-operated
- Ports/positions
- 2/2-way
- Operating pressure
Max.: 350 bar
(5,076.32 psi)Min.: 0 bar
(0 psi)- Flow rate
Max.: 96,000 l/min
(422.7 us gal/min)Min.: 0 l/min
(0 us gal/min)
Description

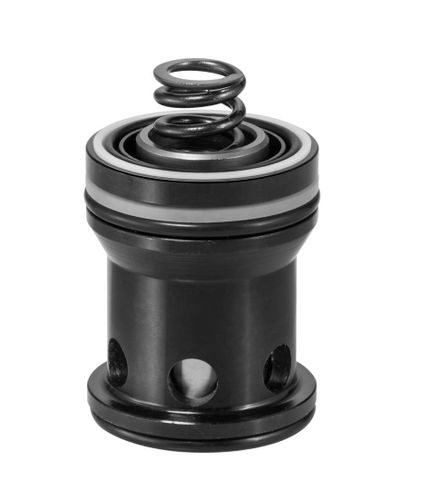

Directional seated valves type CVK, CVS and CVD are 2/2-way insert valves. They are used as logic elements for installation in hydraulic control blocks. A control cover is required for complete valve function.
Type CVK is a piston valve. Type CVS is a seated valve. Type CVD is a seated valve with damping pin.
Features and advantages
Two basic positions (opened and closed), several intermediate positions possible
For assembly into special housings or control blocks
Entirely pressure-controlled
