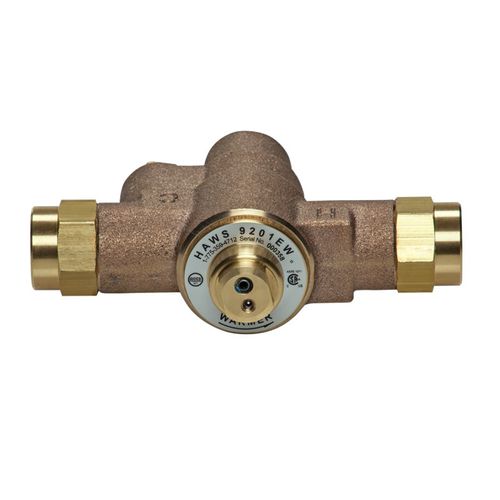

Mixing thermostatic valve 9201EW

temperature controlbrassfor water

Model 9201EW Emergency Valve thermostatically mixes hot and cold water to provide a safe fluid supply for a single emergency eye/face wash. Additionally, to ensure a fail-safe water supply for emergency eyewash stations, a cold water by-pass valves open in the event of hot water pressure loss. (No gauges supplied - ASSE 1071 standard recommends gauges be placed 5 to 8 feet (1.52 to 2.44 m) downstream for the most accurate temperature measurement.) A flow rate of 1 to 10 gpm (3.8 to 37.8 L) for better temperature control across the operating range AXION's superior design and technology provide a complete safety solution for increased victim comfort. Wax based thermostat technology for fast response time with proven highly reliable temperature control Cold Water Bypass flow rate of 3.8 gpm (14.4 L) (When tested under conditions specified in ASSE 1071) Modular brass design with supplied check valves Over-sized valve seats resist failures caused by foreign matter Efficient funnel design improves temperature control at low flow rates Outlet temperature is factory set to 85° F (29° C). Tempered water: High temperature limit is factory set to 90° F (32° C).
