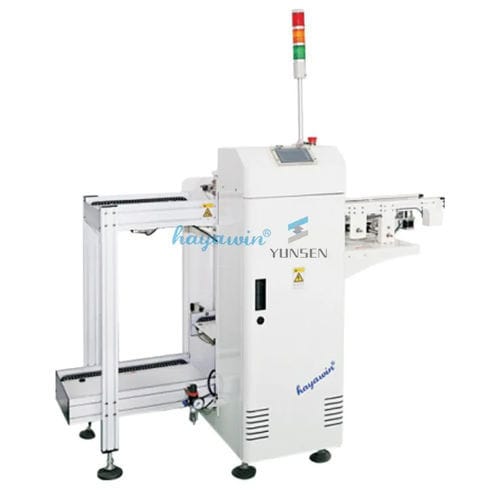

PCB unloader HY-250ULD

automatic

SMT PCB Automatic Unloader Unloading PCBs in SMT line Features and Benefits ● Enhanced aluminum structure and plastic chains let machine more stable during operation. ● LED TFT touch screen control panel, easy to operate ● Standard SMEMA communication with other unit ● With 0.7m conveyor platform ● Panasonic PLC ● Four step pitches selection(10,20,30,40mm) ● 2 magazines exchange keep the board loading uninterrupted ● Special structure with Anti-jammed and foolproof function Specifications Dimension: L1700*W780*H1200±30mm Magazine size: L355*W320*565mm Max PCB size: L330*W250mm Transport height:920±20mm Transfer direction: Left to right/ right to left Belt speed: 0-8m / min, adjustable PCB edge support: 3mm Power supply:100-230v AC Power voltage:350w Air supply:4-6 bar Air consumption: max 10 L/min PCB unloading time PCB: approx. 6 seconds Pitch distance: 10, 20, 30, 40mm Magazine qty: 2pcs
