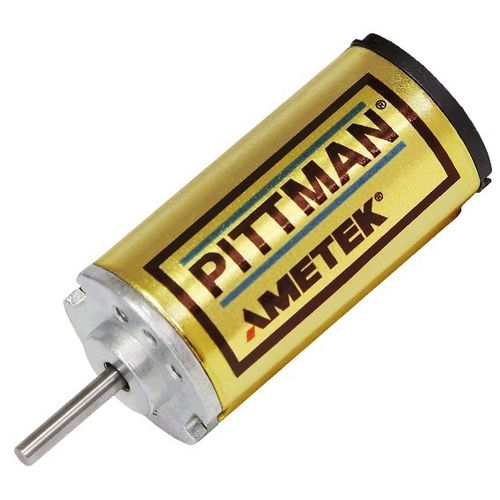

DC motor DC022C seriesbrushed36 Vslotted
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 36 V
- Configuration
- slotted
- Number of poles
- 2-pole
- Power
Max.: 8.6 W
(0.012 hp)Min.: 2.7 W
(0.004 hp)- Torque
Max.: 0.0141 Nm
(0.0104 ft.lb)Min.: 0.0056 Nm
(0.0041 ft.lb)- Rotational speed
10,000 rpm
(62,831.85 rad.min-1)- Diameter
22 mm
(0.87 in)
Description
The DC022C series brush commutated DC motor is a 22 mm diameter unit offered in 3 lengths with continuous output torques of 0.0056 to 0.0141 Nm.
Features:
Speeds up to 10,000 RPM possible
DC bus voltage up to 36 Vdc
Eight standard windings - Special windings available
2 pole stator with neodymium magnets
5 slot skewed rotor
Sintered bronze bearings - ball bearings available
Copper graphite brushes - RFI suppression available
