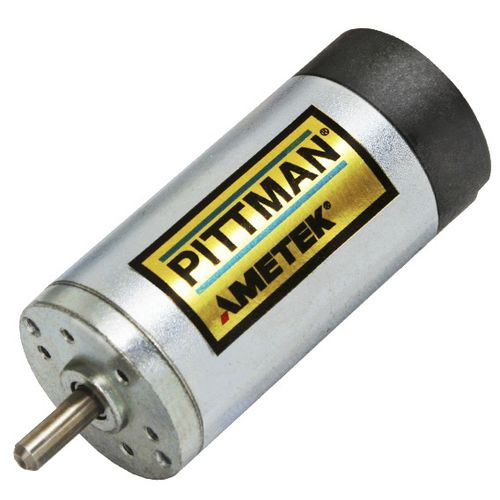

DC motor DC026C seriesbrushed48 V2-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushed
- Voltage
- 48 V
- Number of poles
- 2-pole
- Power
Max.: 13 W
(0.018 hp)Min.: 5.8 W
(0.008 hp)- Torque
Max.: 0.0226 Nm
(0.0167 ft.lb)Min.: 0.0134 Nm
(0.0099 ft.lb)- Rotational speed
10,000 rpm
(62,831.85 rad.min-1)- Diameter
26 mm
(1.02 in)
Description
The DC026C series brush commutated DC motor is a 26 mm diameter unit offered in 3 lengths with continuous output torques of 0.0134 to 0.0226 Nm.
Features:
Speeds up to 10,000 RPM possible
DC bus voltage up to 48 Vdc
Eight standard windings - Special windings available
2 pole stator with neodymium magnets
7 slot skewed armature cogging reduction
Ball bearings
Copper graphite brushes - RFI suppression available
