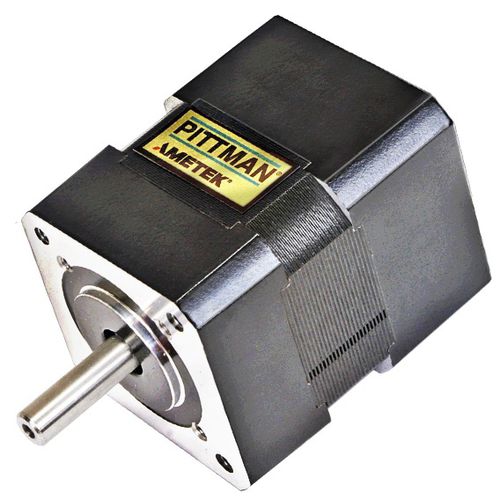

DC motor EC042B series

brushlessprecisionmotion control

The EC042B series brushless motor is a high torque density 4 pole model designed as an economical yet higher performance general purpose servo motor. The EC042B is an excellent choice for both power transmission and precision motion control applications. It is offered in 3 motor lengths with continuous torque from 0.064 - 0.17 Nm in a 42 mm diameter. The EC042B is a great choice if more torque is needed in a 42 mm motor. Features: Speeds up to 9,000 RPM possible DC bus voltage up to 96 Vdc Large bearings for high side loads Metric mounting Eight standard windings per stack - Special windings available
