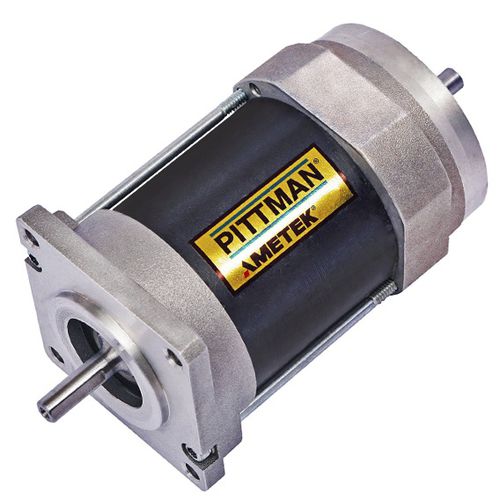

DC motor EC057A seriesbrushlessNEMA 234-pole
Add to favorites
Compare this product
Characteristics
- AC/DC
- DC
- Type
- brushless
- Configuration
- NEMA 23
- Number of poles
- 4-pole
- Other characteristics
- low-voltage
- Power
Min.: 210 W
(0.286 hp)Max.: 340 W
(0.462 hp)- Torque
Min.: 0.38 Nm
(0.2803 ft.lb)Max.: 0.93 Nm
(0.6859 ft.lb)- Rotational speed
6,000 rpm
(37,699.11 rad.min-1)- Diameter
57 mm
(2.24 in)
Description
The EC057A series brushless DC motor is a high torque model brushless motor designed in a NEMA 23 package. It is offered in 3 motor lengths with continuous torque from 0.38 - 0.93 Nm.
Features:
Speeds up to 6,000 RPM possible
DC bus voltage up to 170 Vdc
NEMA 23 configuration
Six standard windings
4 Pole Rare Earth design
Catalogs
No catalogs are available for this product.
See all of Haydon Kerk Pittman‘s catalogs
