Drawers, flat: 4 x 79 x 527 x 348 mm ∙ Drawers, high: 2 x 164 x 527 x 348 mm
Product information

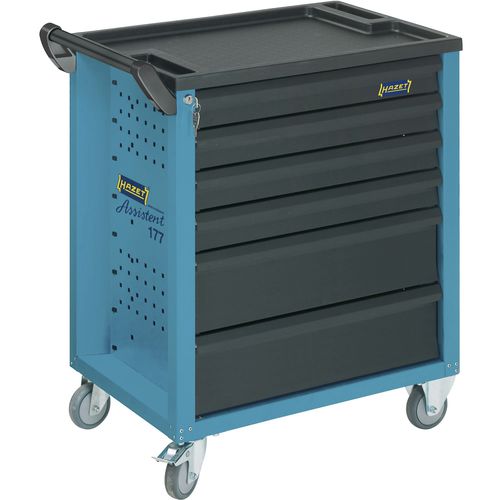

Tool trolley
4 flat and 2 high drawers
Large ball-bearing wheels (∅ 100 mm),
easy manoeuvrability, even with high dynamic load
2 swivel castors (∅ 100 mm), 1 x lockable
Thread guard – protects the bearings against dirt and threads
Grey non-marking elastic tyres enable smooth movement
Two-stage locking concept:
Central locking, lockable with cylinder lock and 2 keys
Individual drawer locking prevents unwanted drawer opening
100% sliding-out with roller guides
Total loading capacity (dynamic): 300 kg
Loading capacity (static): 300 kg
Worktop: Plastic, resistant to solvent, with integrated storage wells
Loading capacity per drawer: 20 kg
Colour: HAZET blue
Made in Germany
Dimensions / length: 780 mm x 498 mm x 915 mm
Net weight: 62.8 kg
Drawers, flat: 4 x 79 x 527 x 348 mm
Drawers, high: 2 x 164 x 527 x 348 mm
Drawer size for order system: 3/3
Number of separation sheets: 6
Worktop height: 881
Number of fixed castors: 2 (∅ 100 mm)
Number of swivel castors: 2 (∅ 100 mm)
Rectangular perforation of the side panels provides various fastening options for accessories such as paper bin, cable drum etc.
Side fastening panels, e.g. for HAZET tool hooks, article group 112
The drawers are equipped with one separation sheet each as standard
Suitable for HAZET Safety-Insert-System and plastic drawer inserts
Recessed side panels protect accessories from damage, being fastened within the trolley's outer dimensions
Handle firmly attached to the trolley
