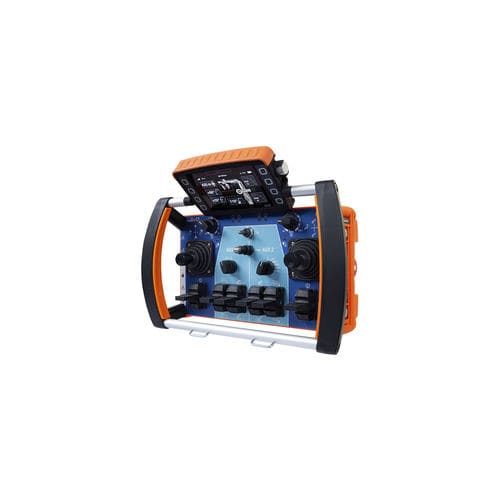

Analog remote control spectrum G
joystickwith toggle switchrotary switch

analog remote control
analog remote control
analog remote control
analog remote control
analog remote control
analog remote control
analog remote control
Add to favorites
Compare this product


Characteristics

Type
analog
Control interface
joystick, with toggle switch, rotary switch
Features
with emergency stop, on/off
Protection level
IP65
Product applications
industrial, machine
Battery type
rechargeable, Li-ion
Length

209 mm
(8.23 in)

Width

373 mm
(14.69 in)

Weight

3 kg
(6.6 lb)

Temperature

Max.: 70 °C
(158 °F)

Min.: -20 °C
(-4 °F)

Frequency

Max.: 2,480 MHz

Min.: 405 MHz

Continuous working time

18 h

Description

spectrum G is the ideal transmitter for very large machine applications: Thanks to an extra-large front panel, a huge selection of features and a high-performing 5“ color display, this high-end radio control leaves nothing to be desired. Operating elements & control functions Up to 6 joysticks or up to 10 linear levers or a combination of linear levers and joysticks Push buttons, toggle switches, rotary switches/buttons and other operating elements can be combined individually Up to 12 single-step push buttons at the side STOP impact switch radiomatic® iCON for display navigation Up to 32 control functions (on / off) Up to 12 analog commands for joysticks / linear levers, up to 4 further analog commands, e.g. for potentiometers Number of control functions expandable by radiobus® modules Optional: Joystick with integrated button Z-axis switch for simultaneous control of 3 drives Battery technology Rechargeable Li-ion battery, optional: LED battery level indication Endurance during continuous use: usually 18 hours Optional: radiomatic® CPS Indication Operating state indication via: LED Color display Battery status indication via: LED Color display Acoustic signal Transmitter vibration
