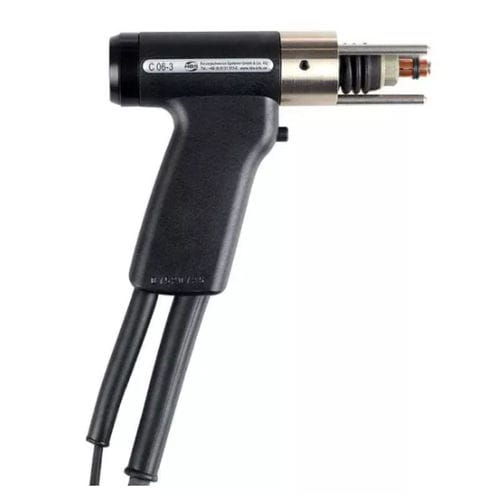

Stud welding gun C 06-3

manualcapacitor discharge

Welding range M3 to M6, dia. 2 to 6 mm / #4 to 1/4‘‘, dia. 14 ga to 1/4“ Stud length 6 to 40 mm / 0.24“ to 1.57“; longer studs (> 40 mm / 1.57“) with optional accessories Stud type Any type or shape (special chucks if required) Welding cable 3 m / 9.84´, 25 mm², SK 50 IP-Code IP 20 Workplace noise level > 90 dB (A) may occur during welding Dimension LxWxH (without cable) 170 x 40 x 140 mm / 6.70“ x 1.57“ x 5.51“ Weight (without cable)0.5 kg / 1.10 lbs (without cable) Order No. 92-20-275 (Tripod)
