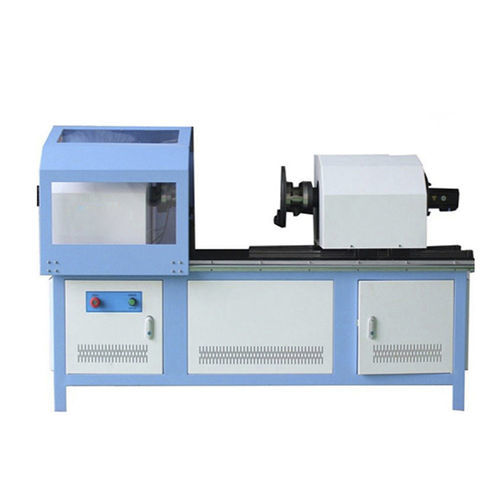

Torsion testing machine HCTE0002

computer-controlledmanualfor springs

It is mainly used for testing raw materials, semi-finished parts and finished parts; Computer control operation is adopted to collect torque, peak value, angle, curve and other data; The display displays the torque time, torque angle time and torque torque angle test curves of the tested parts; It can realize the storage, examination and printing of test data, test report, etc. Main technical parameters： Parameter1)： 1. Style: horizontal 2. Tester level: level 1 3. Accurate measurement range: 1%FS-100%FS; 4. Torque value error: better than 1%;Torque repeatability error is better than 1% 5. Angular resolution ratio: 0.01 6. Angle measurement accuracy: better than 1% 7. Torsion accessories: three jaw chuck, two-way jacking type 8. Test stroke: 300mm or 500mm (can be increased) 9. Torsion speed control range: 0.01r /min ~ 5R/min stepless speed regulation 10. Torsion speed control accuracy: better than 1% 11. Testing machine level: level 1 12. Appearance: GB/T2611 requirements 13. Protection function: the testing machine has overload protection function 14. Power supply:220V,50HZ
