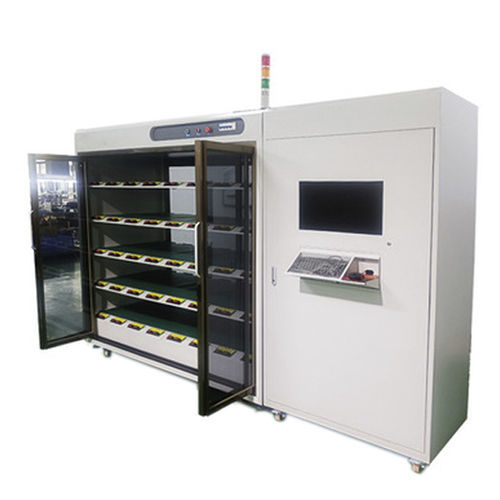

Aging test chamber HCTE0044

for auto lamp

Products Introduction: Auto lamp aging cabinet, real-time monitoring of aging current, voltage and power. Product Features: 1. The product is suitable for high power fast charger adapter ageing test, and also can design customized other aging test equipment; 2. The aging of the specifications of the tank L2000 *w690 * H1888mm, burning rack points of products and load; 3. Burning rack will be divided into 6 levels, unilateral ageing, each layer can put 32 PCS products，192 PCS products totally （the quantity of aging test can also be customized according to customer's request ); 4. The cooling mode of aging cabinet load area adopts indoor ambient temperature air cooling, room temperature; 5. The product area can be configured with a group of hot air circulation system to accelerate the aging test of products (hot air circulation is shown in the picture), (40-80 degrees can be set); 6. Monitoring voltage, current, power, etc. are set by computer to reduce operation time and cost; 7. Beautiful structure, small volume, easy to move and demolition. Software Features: 1. Constant discharge current (electronic load discharge); 2. Discharge data collection and data preservation; Discharge data curve display; 3. Single point and multi-point can be set to control voltage discharge; 4. Monitor voltage, current and power and record and save data, that is, real-time monitoring of product aging status, defective products alarm; 5. Aging load current and voltage are set by computer;
