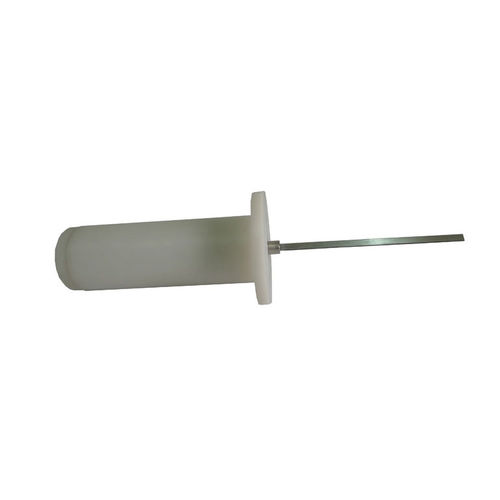

Test probe HT-I20, HTI21

Probe for Testing Socket Standard: IEC884-1.2002 figure 9 and figure 10 Application: The 20N thrust probe is mainly used to check whether the live parts in the protection door are touched while the 1N thrust probe is mainly used to check whether the live parts in the protection door and the live parts with reinforced protective sockets are touched. They are used to test the anti-shock performance of the socket structure. Specimen range: Socket Feature: It is made of nylon handle and test probe. Parameters: 1. 20N thrust test probe HT-I20: Probe part 3+0.03 0×1+0.015 0 ×80±0.5, rounded ends R0.2±0.05, 20N thrust; 2. 1N thrust test probe HT-I21： Probe part Φ1+0.015 0 ×80±0.5，rounded ends R0.05，1N thrust.
