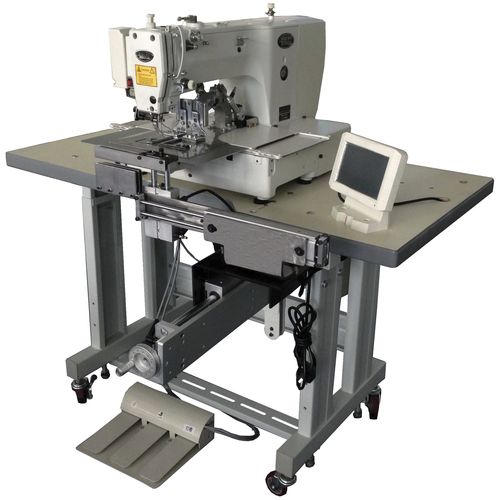

Curtain hook sewing machine S-CT150

fixedautomatic

S-CT150 Auto Curtain Pinch Pleating Machine Description The basic automatic curtain pleater. A simple and basic automatic sewing workstation that can pleat, sew and tack the curtain in one step of a pedal. Machine can do single, double and triple pleat by simply adding or removing pleating metals. The pleating will be done at the same time when the sewing and tacking, therefore increasing the production efficiency at its highest. Simple pleating mechanism design, equipped with only two air cylinders which have been synchronized with the sewing control system, low maintenance. Technical Parameter - Model No - S-CT150 Sewing Head - S-326G Needle Brand - German Groz Beckert Needle System - DPx17 (Titanium Coated) Hook Brand - Japanese Hirose Hook Hook Type - Shuttle Hook Stitch Length - 0.2 – 12.7mm Sewing Motor - AC Direct Drive Servo Motor Power - 750 W Max. Sewing Speed - 2500 rpm Voltage - 220 V – 50/60 Hz Packaging Dimension - 1260 x 1120 x 1350 mm Packaging Material - Export Plywood Gross Weight - 230 kg
