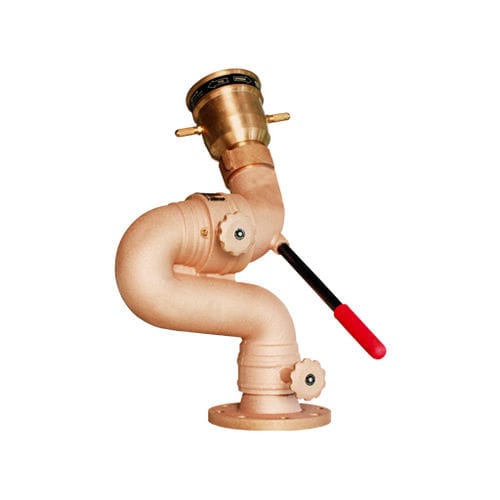

Manual fire nozzle VAJRA-331

Monitor VAJRA-331 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other Industrial application. The monitor has cast bronze 3 inch (80MM) water way. The vertical and horizontal rotation is through corrosion resistant bronze swivelling joint with double row of stainless steel ball bearing. Vajra-331 Monitor is UL Listed. • Cast Bronze Construction • 360° continuous horizontal rotation and +90° & -45° vertical elevation or optional +85° & -0°/-15°/-30° vertical elevation • Double Row of SS ball bearing & grease fittings • Max operating pressure 12 bar (175 psi) • Vertical and horizontal movement by handle and manual lock • UL Listed with Varsha40U and VarshaHF40U monitor nozzles DESCRIPTION The Monitor Model VAJRA-331 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other Industrial application. The Monitor possesses several design features that provides ease of operation, minimum maintenance and resistance to corrosive environments. The monitor has cast bronze 3 inch (80MM) water way. The vertical and horizontal rotation is through corrosion resistant bronze swiveling joint with double row of stainless steel ball bearing. Both vertical and horizontal movements are controlled by handle with twist lock. The monitor has large flow capability and can be manually operated by a single fire fighter.
