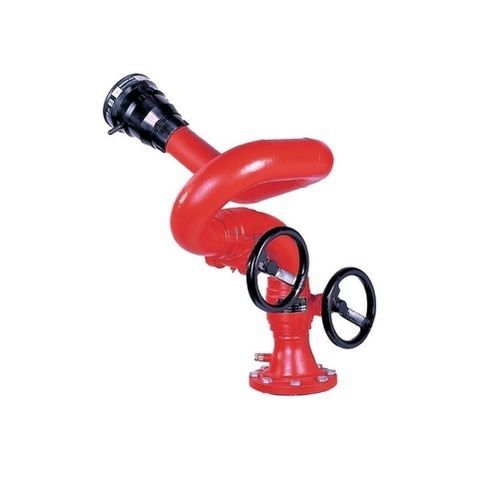

Manual fire nozzle MG 413

Monitor MG-413 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other Industrial application. The Monitor possess several design features that provides ease of operation and minimum maintenance. MG-413 Monitor is FM Approved. •Hot dip galvanized Carbon steel waterway and Bronze swivel join •Size 100 mm (4") with 100 or 150 mm (4" or 6") flanged inlet and 4" BSP male outlet •Double row of Stainless Steel ball bearing with grease fittings •Liquid filled pressure gauge (optional) •Fully enclosed worm gear for horizontal and vertical movement •360° continuous horizontal rotation and +90°, -45° vertical elevation •Maximum operating pressure 12 bar (175 psi) •FM approved with VARSHA 50 master stream nozzle and solid bore nozzle NW 1000 •Red polyurethane finish DESCRIPTION Monitor Model- MG 413 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other Industrial application. The Monitor possess several design features that provides ease of operation, minimum maintenance and resistance to normally destructive environments. The monitor is used with aspirating, non-aspirating and water nozzles with flow range upto 1250 GPM (4730 LPM). The monitor has welded carbon steel 4 inch (100 MM) water way.
