Storage tank

carbon steelstainless steelpressure

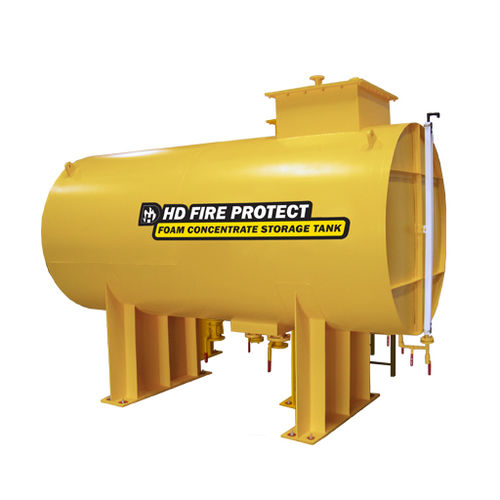

Atmospheric storage tanks are used with Inline Foam Inductor, Balance Pressure Foam Proportioner and Inline Balance Pressure Foam Proportioning system. Tanks are custom made in stainless steel (304 or 316) or carbon steel material. All tanks can be supplied with inspection hatch, ladder, vent valve, level gauge, etc. As the tanks are custom-made it is necessary to specify and confirm list of accessories needed. Foam storage tanks are suitable for storing synthetic AFFF, alcohol-resistant AFFF or fluoroprotein foam concentrates. •Horizontal unit •Made up to 15000 liter (4000 Gal) Storage capacity •Stainless Steel 304/316 material •Comes with ladder, sight glass and air vent •Expansion dome of 2% tank capacity •Flat end or dome end •Natural, Custom or Red RAL 3000 epoxy painted •Tank can be custom made with inline inductor mounted on the tank APPLICATION Atmospheric storage tanks are used with Inline Foam Inductor, Balance Pressure Foam Proportioner and Inline Balance Pressure Foam Proportioning system. SPECIFICATION The atmospheric foam concentrate storage tank is made of stainless steel. All the tanks must be kept filled upto the level of half way of expansion dome. The tank is provided with an expansion dome with a volume not less than 2% of the total capacity of the tank. A sediment sump is provided at the bottom of the concentrate tank. The tank is provided with an inlet, an outlet, a drain connection and a fill connection. Mineral oil shall be placed on the surface of the Foam Concentrate in the tank to a depth of approximately 6mm. This will service to minimise Foam Concentrate contact with air
