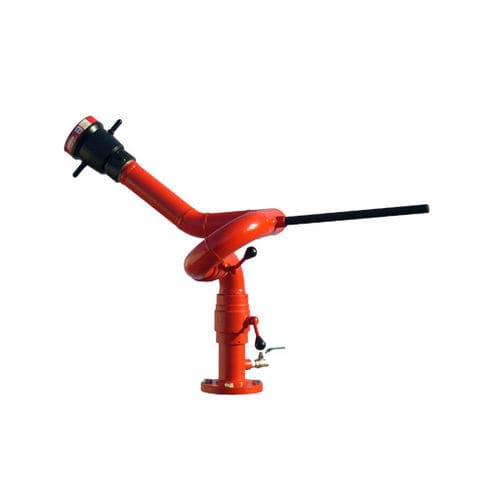

Manual fire nozzle M 241

Corrosion resistant stainless steel monitor M-241 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other industrial applications. •Stainless steel waterway •63 mm (2.5") waterway, Inlet flanged 65, 80 or 100 mm (2.5" 3" or 4") and outlet threaded to 2.5" BSP male •Vertical and horizontal movement by handle and manual lock •Bronze or Stainless steel swivel joint with double row of stainless steel ball bearing and grease fittings •360° continuous horizontal rotation and +90°, -45° vertical elevation •Maximum operating pressure 12 bar (175 psi). Corrosion resistant stainless steel monitor ModelM 241 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other industrial application. The Monitor possess several design features that provides ease of operation, minimum maintenance and resistance to normally destructive environments. The monitor is used with aspirating, non-aspirating and water nozzles with flow range upto 600 GPM (2270 LPM). The monitor has welded stainless steel 2.5 inch (65MM) water way. The vertical and horizontal rotation is through stainless steel swiveling joints with double row of stainless steel ball bearing. Both vertical and horizontal movements are controlled by handle with twist lock.
