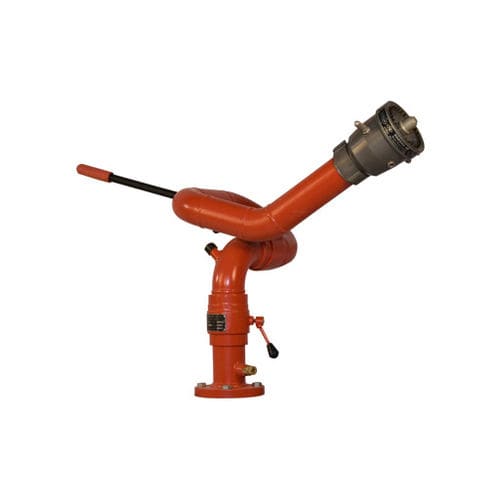

Manual fire nozzle M 341

Corrosion resistant stainless steel monitor M-341 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other industrial applications. Monitor M-341 is FM Approved. Monitor is epoxy RED painted. The balanced flow single waterway design and precision machining on swivel joints reduces friction loss and improves jet reach. Monitor M-341 is specifically designed considering ease of use and better performance. •Stainless steel construction •75 mm (3") waterway with flanged inlet of 80, 100 or 150 mm (3", 4" or 6") & outlet threaded to 3" BSP male •Vertical and horizontal movement by handle and manual lock •Easy deployment by one person •Bronze swivel joint with double row of stainless steel ball bearing with grease fittings •Maximum operating pressure 12 bar (175 psi) •360° continuous horizontal rotation & +90°, -45° vertical elevation Corrosion resistant stainless steel monitor ModelM 341 is durable manual controlled monitor for fixed installation as well as trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other industrial applications. The Monitor possess several design features that provides ease of operation, minimum maintenance and resistance to normally destructive environments.
