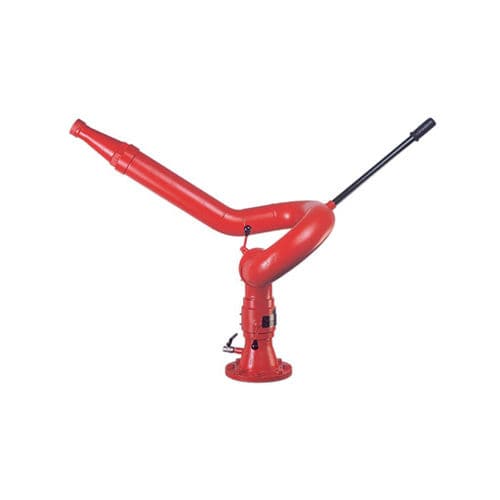

Manual fire nozzle M

•Hot dip galvanized carbon steel waterway •Maximum service pressure 12 bar (175 psi) •Monitor with fixed flow solid bore nozzle •Bronze swivel joint with double row of stainless steel ball bearing •Vertical & horizontal movement by handle and manual lock •360° continuous horizontal rotation & +90°, -45° vertical elevation The Monitor Model - M is durable manual controlled monitor for fixed installation as well as for trailer mounted unit. The monitor is generally used for protection of flammable liquid storage tanks, loading racks, dykes marine and many other industrial applications. The Monitor possess several design features that provides ease of operation, minimum maintenance and resistance to normally destructive environments. The monitor is fitted with solid bore straight stream nozzle. The monitor has welded carbon steel water way. All steel parts are hot dip galvanized and painted for excellent corrosion resistance. The vertical and horizontal rotation is through corrosion resistant bronze swiveling joint with double row of stainless steel ball bearing. Both vertical and horizontal movements are controlled with handle with twist lock. The monitor has large flow capability and can be manually operated by a single fire fighter. The design ensures to prevent jet reaction forces from effecting the horizontal and vertical position of the monitor. The monitor has the ability for 360 deg. continuous horizontal rotation and angle of elevation is adjustable with fix stop from+90 deg.
