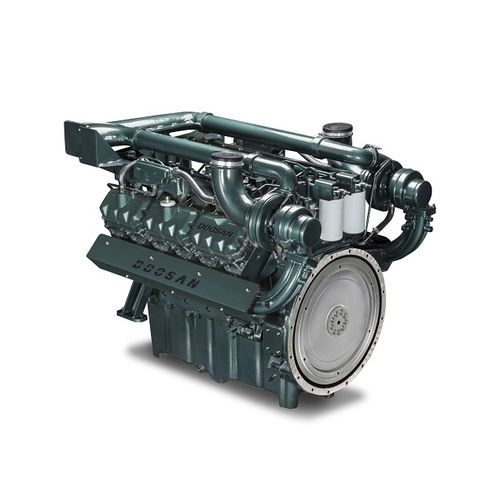

Diesel engine DP222CA
12-cylinderturbo-intercoolerfor generator sets

diesel engine
diesel engine
diesel engine
diesel engine
diesel engine
Add to favorites
Compare this product


Characteristics

Type
diesel
Number of cylinders
12-cylinder
Technology
turbo-intercooler
Product applications
for generator sets
Emissions level
Tier 2
Power

Max.: 836 kW
(1,136.643 hp)

Min.: 663 kW
(901.429 hp)

Rotational speed

1,500 rpm, 1,800 rpm
(9,424.78 rad.min-1, 11,309.73 rad.min-1)

Displacement

21.9 l
(5.785 gal)

Weight

1,676 kg
(3,694.95 lb)

Length

1,835 mm
(72.2 in)

Width

1,593 mm
(62.7 in)

Height

1,701 mm
(67 in)

Description

Cylinder - V12 Aspiration - Turbo Charger & Inter Cooler Bore x Stroke - 128 x 142 mm Emissions - Non-Tier / Tier 2
