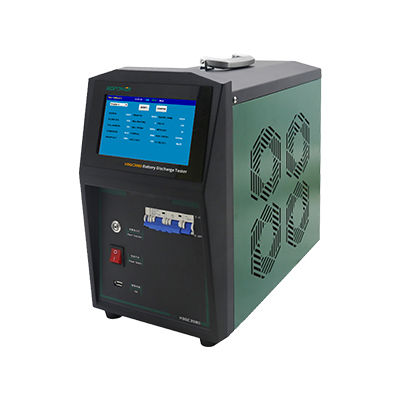

Battery discharge bank HDGC3980 series

portabletest

HDGC3980 Battery Discharge Capacity Tester can be used as the discharge load in the battery off-line state to realize the constant discharge at the set value by regulating continuously the discharge current. When discharging, the tester will automatically stop discharging when the voltage on the battery group terminal or the cell falls to the set lower limit value, or when the set discharging time is out, or when it reaches the set discharging capacity. Battery Discharge Tester can records all valuable and continuous real-time data during the discharge process. This tester system is simple, safe and accurate for monitoring voltage of cells adopting wireless connection. Features ● PTC ceramic resistor is adopted to avoid the red heat phenomenon for a safer discharge process . ● Cell monitoring module is performed the voltage commission by remote radio wireless communication mode, it can set up to four unique frequency brands, which can simultaneously transmit data of four monitoring systems at the same area without interfere and channeling . ● Wireless acquisition box can monitor each cell for monitoring the whole process of battery series . There are three data monitoring methods as follows: 1.Data transmission between cell monitoring module and charge discharge main unit 2.Data transmission between cell monitoring module and USB wireless terminal 3.Data transmission among cell monitoring module, charge discharge main unit and USB wireless terminal . ● Each tester can monitor 25 cell monitoring  mode , every cell monitoring mode can connect 12 battery ,monitoring in total of 300 battery.
