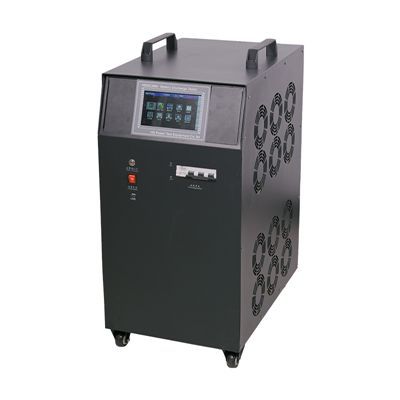

Battery charge/discharge bank HDCF series
testmobile

Battery charge/discharge bank - HDCF series - HD Power Test Equipment Co.,ltd  - test / mobile
Battery charge/discharge bank - HDCF series - HD Power Test Equipment Co.,ltd  - test / mobile
Add to favorites
Compare this product


Characteristics

Options
for battery, test, mobile

Description

Battery Discharge Charge Tester is mainly used for the charge test of the lead-acid battery of the backup power supply in the telecommunications, mobile, substation, railway transportation and pertrochemical industry power DC industries. It can proceed the discharge and charge for the batteries to extend the lift-time .   Features   ● PTC ceramic resistor is used to avoid red heat for a safer discharge process. ● Cell monitor module adopts remote RF wireless communication mode for  voltage data transmission, and can set up to 4 independent frequency bands.it can transmit data simultaneously with up to 4 monitoring systems in the same area without interference or channeling. ● Wireless monitor module can monitor each cell, realizing to monitor battery group discharge process, and it has three data collection methods: 1.Data transmission is carried out between the cell monitoring module and the tester master. 2.Data transmission is carried out between the cell monitoring module and USB wireless terminal. 3.Data transmission is carried out among the cell monitoring module,  the  tester master and USB wireless terminal. ● Each tester can monitor 25 cell monitor module , and each cell monitor module can be connected to 12 batteries, monitoring a total of 300 batteries. The tester can automatically screen the serial number and voltage value of the highest 6 batteries and the lowest 6 batteries, and display them in different colors on the display screen. ● Cell voltage value can be displayed in two ways sliding form and sliding bar chart.
