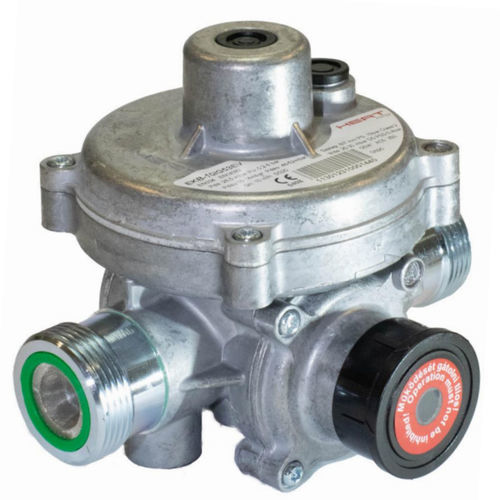

Propane pressure regulator EKB series

for airheated gasfor sour gas

The function of the two stage EURO KOMBIBLOCK EKB type gas pressure regulator is to reduce the outlet pressure to a previously given, constant level, irrespective of the level of inlet pressure (0,1-10,0 bar) and the flow rate. It is applied to supply gas for houses, offices, social buildings and industrial establishments. The EKB with a high-level accuracy in regulation (AC 5, SG 20) and variety in all-mains connection offers a wide range of many-sided combination. As standard, the two stage gas pressure regulator are fitted with a safety shut-off valve. A range of connectors and designs with or without flanges internal or external threaded, inline or corner version, thermal gas cut-off (HTB) safety membrane or pressure cut-off for supply interruption protection, safety blow-off valve and flow rate limitation devices are available. The gas pressure regulator is designed according to PED 2014/68/EU. Technical data Outlet pressure range: pas 13 ÷ 100 mbar Set range of safety shut-off valve: pso 30 ÷ 160 mbar psu 6 ÷ 75 mbar Regulatory class: AC 5/10 Lock-up pressure class: SG 20 Accuracy: pso/psu AGo 10/AGu 30 Flow rate: see diagram Position of installation: discretionary Thermic release cc.: 105 °C
