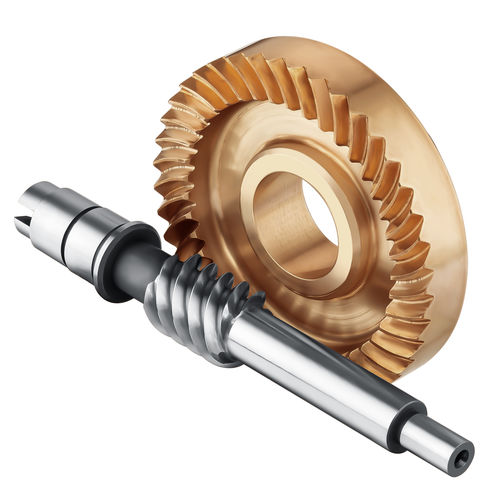

Spiroid gear pairs Spiroid gear pair is operate on nonintersecting, nonparallel axes. It involves a tapered pinion that somewhat resembles a worm. The spiroid gear is a face gear with teeth curved in a lengthwise direction; the tooth is like a helix angle-but not a true helical spiral. Figure shows the schematic relation on the spiroid gear pairs to cylindrical worm gears, hypoid gears and bevel gears. Generally, the shaft angle ∑=90°. The corresponding installation position of spiroid pinion and spiroid gear is: the left hand of spiroid pinion applies down offset and the left hand of spiroid pinion applies up offset. The spiroid gear pairs has the helicon types and the spiroid types. The helicon is essentially a spiroid pinion with no taper. The spiroid is essentially a spiroid pinion with taper. Product Features - Backlash adjustable, Zero backlash can be achieved - More teeth in meshing - Higher load capacity - Superior shock strength - Proper line of contact which helps to form lubrication oil films between conjugate tooth surfaces. - Larger induced curvature radius - Better meshing performance - Higher transmission efficiency - Running smoothly - Low noise Application - Aerospace - National defense - Medical instruments - Robot joints - Indexing device of tooling - Precise apparatuses and instruments drive - Radar antennas - Agricultural machinery - Lifting machinery - Packaging machinery - Power wheelchairs - Scooters - Booster pump used on automobile - Automobile pedals - Electric windows and doors - Food machinery - Power tools
