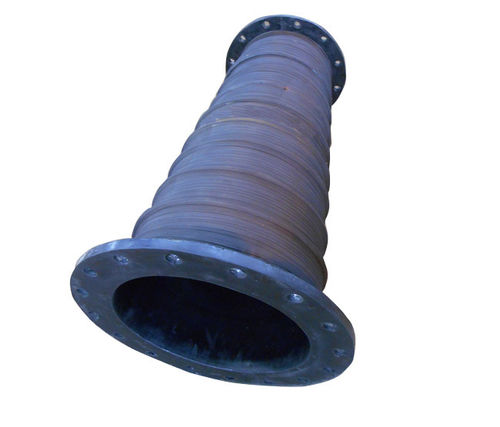

Bulk material hose EPDMNBRSBR
Add to favorites
Compare this product
Characteristics
- Use
- for bulk materials
- Material
- EPDM, NBR, SBR, silicone, polyester, aramid
- Applications
- for mining applications
- Other characteristics
- wear-resistant, chemical-resistant, UV-resistant, flange, spiral wire
- Inner diameter
Min.: 152 mm
(5.984 in)Max.: 1,300 mm
(51.181 in)- Outer diameter
Min.: 182 mm
(7.165 in)Max.: 1,350 mm
(53.15 in)- Pressure
5 bar, 7 bar, 10 bar, 12 bar
(72.519 psi, 101.526 psi, 145.038 psi, 174.045 psi)
Description
Our company supply specialty hand built hose manufactured from the world's best hose rubber compounds including NR, SBR, NBR, EPDM and silicone. All hoses are designed and manufactured to suit the specific application and therefore the following design factors are considered:
- Pressure
- Wear resistance
- Product temperature
- Chemicals resistance
- Ore or material being transported
- Exposure factors such as UV and Ozone
- Flange arrangement
To achieve the required working pressures, our company mining hose is constructed of woven cord materials such as rayon, polyester or aramid fibers and steel reinforcing components in the form of spiral wire or rings and flanges.
Mining hose is available with inside diameters up to 1200mm and working pressure of 1.4MPa.
