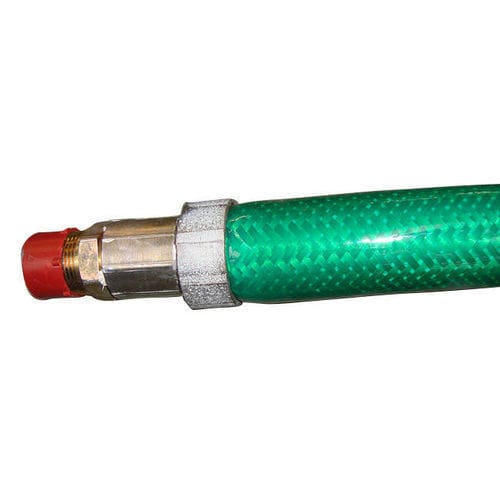

Air hose
for waterpolyurethanelightweight

air hose
air hose
air hose
air hose
Add to favorites
Compare this product


Characteristics

Use
for water, for air
Material
polyurethane
Other characteristics
flexible, abrasion-resistant, lightweight
Inner diameter

Max.: 38 mm
(1.496 in)

Min.: 6.3 mm
(0.248 in)

Outer diameter

Max.: 69 mm
(2.717 in)

Min.: 24 mm
(0.945 in)

Pressure

35 MPa, 70 MPa

Temperature

Max.: 93 °C
(199.4 °F)

Min.: -29 °C
(-20.2 °F)

Description

Whether your business features automotive robotics, power tools or shop air lines, flame resistant hose should be considered the hose of choice for demanding applications. Most durable abrasion resistant, flame retardant multi-purpose hose. Cover is made of high quality, flexible polyurethane and provides the ultimate in abrasion and weld-spatter resistance. This tough, flame-resistant hose combines superior design with quality materials to deliver reliable, lasting performance. Although lightweight, the hose features a strong, bonded construction, providing excellent kink resistance while minimizing hose fatigue. For your convenience, vast selection of Push-Lok and crimp fittings and is available in a variety of cover colors and long lengths. Features: -Weld spatter resistant -Excellent abrasion resistance -Extreme flexibility -Compact bend radius -Specially formulated polyurethane tube -Twin-line or multi-line constructions available Applications General purpose air and water hose often used in robotic welding applications Construction Tube: Specially formulated polyurethane Reinforcement: Fiber Cover: Polyurethane Operating Parameters Temperature Range: Change in working length @ Rated WPSI: ±2% Min. Burst Pressure is 4x Max. Working Pressure at 73°F (23°C)
