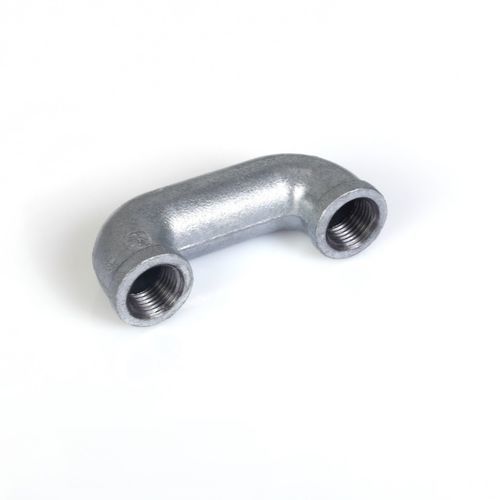

Hydraulic fitting Fig.90U
threadedU-shapedsteel

hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
hydraulic fitting
Add to favorites
Compare this product


Characteristics

Applications
hydraulic
Attachment
threaded
Configuration
U-shaped
Material
steel, cast iron, iron
Other characteristics
standard
Diameter

Min.: 15 mm
(0.591 in)

Max.: 50 mm
(1.969 in)

Operating pressure

25 bar
(362.59 psi)

Description

180 Degree Return Bend Maximum Pressure: - Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Suitable Applications: - Water, Oil, Gas, Petro-Chemical Product Description Malleable iron is a high-strength cast iron material developed in the 1950s. Its comprehensive properties are close to steel. It is based on its excellent properties that it has been successfully used to cast some complex forces, strength, toughness, and wear resistance highly demanding parts. Malleable iron has rapidly developed and widely used in many field. JIANZHI adopt black heart malleable iron,tensile strength is more than 330Mpa,elongation is more than 8%.JIANZHI brand pipe fittings can be used in all major industrial sectors, which require high strength, plasticity, toughness, wear resistance, severe thermal and mechanical shock resistance, high or low temperature resistance, corrosion resistance, and dimensional stability. Product Parameters Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 Work Pressures: - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar Certification: - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI Technical Data Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Hardness: - HB150 (Brinell) Elongation Rate: - 10% Suitable Applications: - Water, Oil, Gas, Petro-Chemical Material: - Malleable Iron
