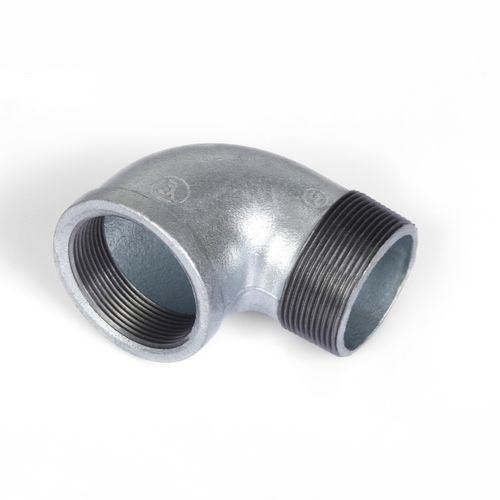

Hydraulic fitting Fig.92

threaded90° anglemetal

Cast Iron Fittings 90 Degree Elbow Maximum Pressure: - Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Suitable Applications: - Water, Oil, Gas, Petro-Chemical Product Description Tensile strength refers to the maximum stress that a material can withstand before it breaks. It is one of the main mechanical indicators of metal materials.JIANZHI adopts KTH330-08 black heart malleable iron as material and ensure tensile strength is no less than 330Mpa,elongation is no less than 8%. Excellent materials are the foundation of high-quality products,chooseJIANZHI, choose high quality. Product Parameters Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242 Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226 Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI Technical Data Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150 Maximum Temperature: - 200°C (392°F) Tensile Strength: - 350MPA Hardness: - HB150 (Brinell) Elongation Rate: - 10% Suitable Applications: - Water, Oil, Gas, Petro-Chemical Material: - Malleable Iron
