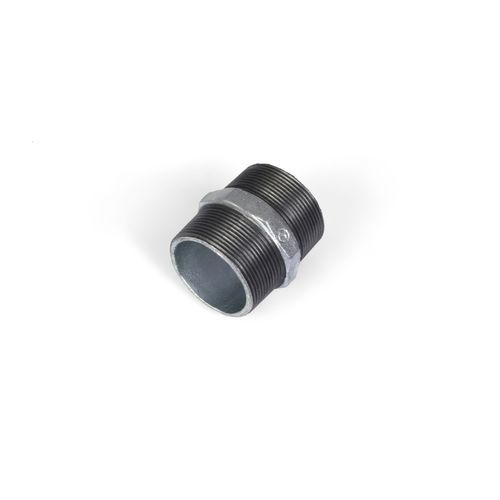

Metal nipple Fig.280threaded
Add to favorites
Compare this product
Characteristics
- Material
- metal
- Other characteristics
- threaded
- Diameter
Max.: 100 mm
(3.937 in)Min.: 8 mm
(0.315 in)
Description
Galvanized Nipple Equal
Maximum Pressure: -
25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: -
200°C (392°F)
Tensile Strength: -
350MPA
Suitable Applications: -
Water, Oil, Gas, Petro-Chemical
Product Description
Do you know?
According to the EN 1562 standard, the Tensile strength should over 300mPa, Jianzhi keep the standard, no less than 350mPa, higher than EN1562 standard.
Product Parameters
Standard: - EN10242 / ANSI / ASME B16.3 / DIN2950 / IS0 49 / NBR6943 / IS1879 / BS EN10242
Threaded Standard: - EN10226 / ASME B.1.20.1 / DIN2999 / ISO7-1 / ISO228 / IS554 / BS EN10226
Work Pressures： - PN25 / 2.5Mpa / 363PSI /CLASS 150 / 25Bar
Certification： - UL Listed /FM Approved /CE /ABNT /TSE /SNI /ISI
Technical Data
Maximum Pressure: - 25 BAR (363PSI) (2.5MPA) CLASS 150
Maximum Temperature: - 200°C (392°F)
Tensile Strength: - 350MPA
Hardness: - HB150 (Brinell)
Elongation Rate: - 10%
Suitable Applications: - Water, Oil, Gas, Petro-Chemical
Material: - Malleable Iron
